Multico Model M morticer parts

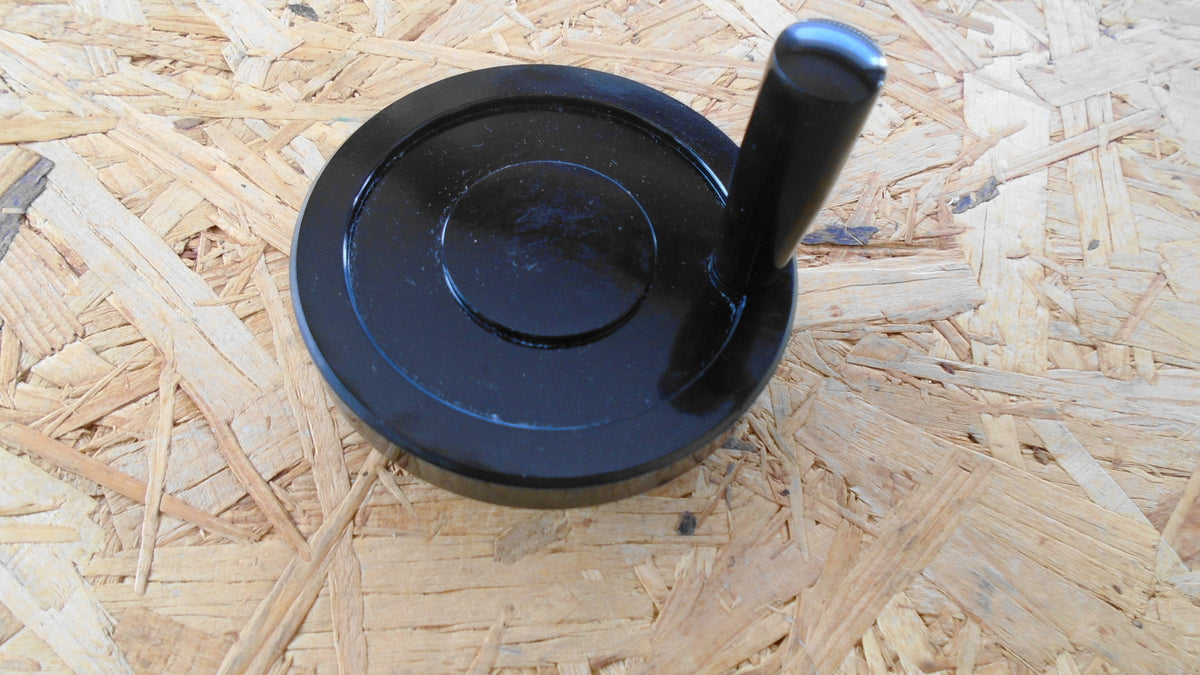

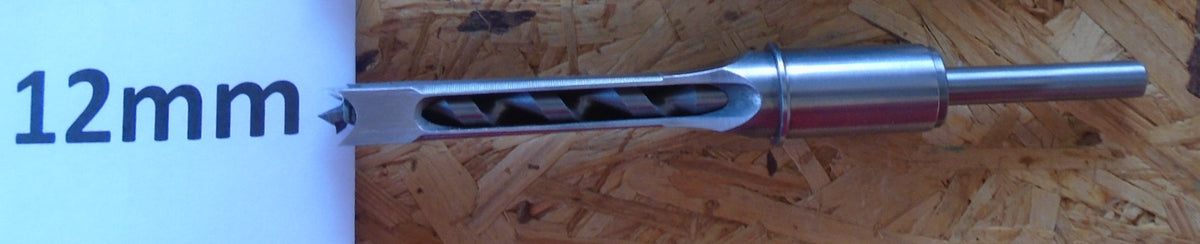

Parts for the Multico Model M, including the M1 and M3: chisel and collet sets in 8, 10 and 12 mm, in ¼″, ⅜″ and ½″, and in ⅝″ and ¾″, the M2693D collet, a 12 mm chisel, the handwheel and the chisel clamps.

The chisel and collet sets also fit early MCD machines. Part not listed? Send us the Multico part number or a photo and we'll check.

Other Multico models

What we stock for the Model M
Chisel and collet sets
MULMSETM (8, 10, 12 mm), MULMSETIMPERIAL1 (¼″, ⅜″, ½″), MULMSETIMPERIAL2 (⅝″, ¾″)
Collet
M2693D, 19 mm
Chisel clamps
H-61.790k
Skip to results list
11 items

Frequently asked questions

Which chisel and collet sets fit the Model M?

Three sets are listed for the Model M and early MCD machines: 8, 10 and 12 mm (MULMSETM); ¼″, ⅜″ and ½″ (MULMSETIMPERIAL1); and ⅝″ and ¾″ (MULMSETIMPERIAL2). Each set comes with the collets that hold its augers; the ⅝″ and ¾″ set has one collet for both.
What gap should I leave between the bit and the chisel?

About 0.8 mm (1/32″) for chisels up to ¾″, and about 1.6 mm (1/16″) for larger ones. Set it with a coin as a spacer.
How do I sharpen a mortise chisel?

Turn a sharpening cone inside the chisel, against the inside bevels, then rub the outside faces flat on a stone. Touch up the spurs of the auger bit with a file. Our MCL cone sharpener is listed for chisels from 3 to 25 mm (⅛″ to 1″).

Part not listed?

Send us the Multico part number, or a photo of the part and your machine's model, and we'll check.

Send a part enquiry
